DESCRIPTION:

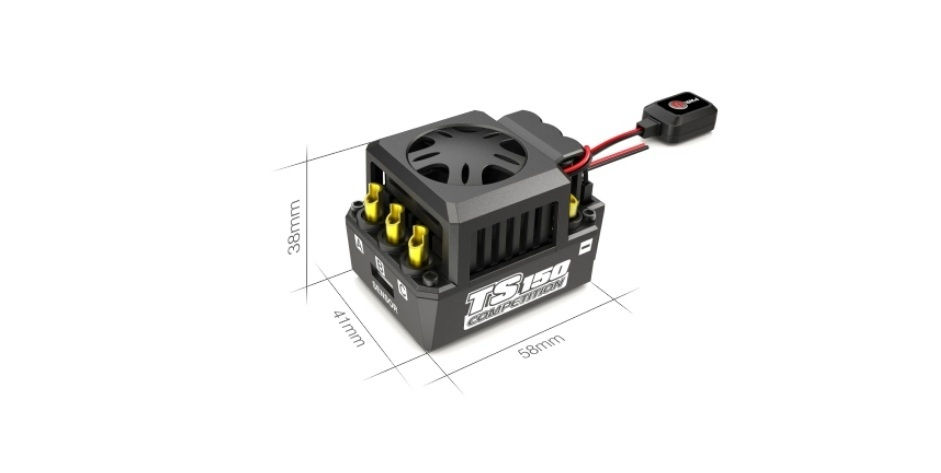

The TS150 Competition ESC is built for 1/8 Buggy, On-Road GT and Monster Trucks offering a wide variety of features.  Several programmable parameters including customizable throttle & brake curves, Punch, Turbo Timing and more.

FEATURES:
Turbo Timing
Low Voltage Protection
Over Heat Protection
Signal Loss Protection
6V/3A BEC - Maximum output current up to 8A.
TS150 Competion ESC Supports 2-6S LiPo or 6-18S NiMH

SPECIFICATIONS:

Constant/Burst Current

150A/950A

Motor Compatible

Brushless Sensor & Sensorless ESC

1/8 BuggyTruck and Monster Motor Limits

2-4S Lipo KV ≤ 3000 - 2-6 Poles



2-6S Lipo KV ≤ 2400 - 2-4 Poles

Resistance

0.0002ohm

Battery Cell Count

2-6S LIPO or6-18S NIMH

BEC Output

6V@5A Fan 5V@0.3A

Weight

95g (without wire)

Dimentions

58mm x 41mm x 38mm (LxWxH)
